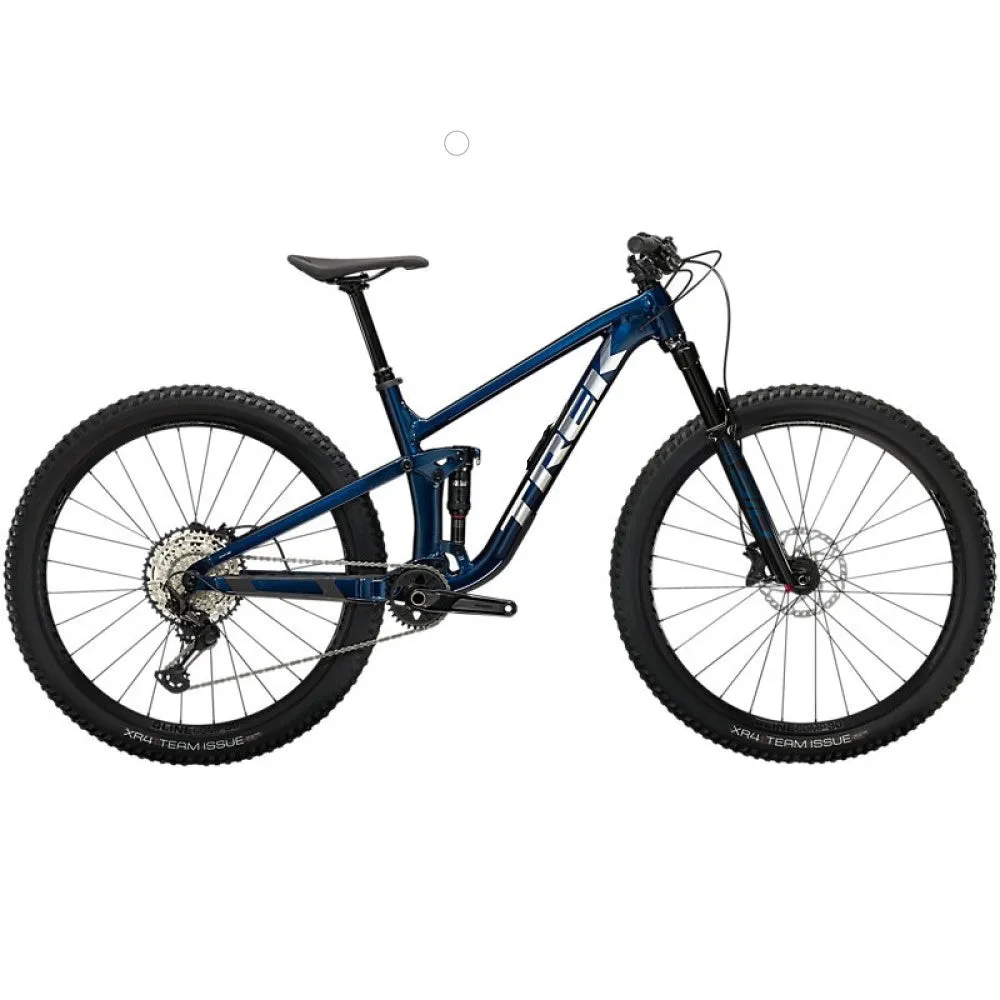

The Top Fuel 8 fuses the speed of a cross-country bike with the capability and forgiveness of a full-suspension trail bike. It's quick and nimble, and dishes out serious fun on flow trails and techy descents alike.
Bikes cannot be shipped as part of large & bulky freight. please contact us directly regarding any bike sales.
FEATURES:
- Active Braking Pivot technology enables precise tuning of suspension response to acceleration and braking forces, enhancing control in critical moments
- With 120 mm of rear travel and progressive trail geometry, the bike delivers a swift and responsive ride, ensuring composure even on challenging terrain
- Internal frame storage allows convenient carriage of essential items, offering freedom from backpacks while riding
- Guided internal cable routing maintains a quiet ride and simplifies maintenance tasks, ensuring a hassle-free experience on the trail
- Smaller frames (S) feature a curved top tube, lowering the standover height for easier straddling, catering to shorter riders' needs. Larger frames (M, M/L, L, XL) adopt a straight top tube, accommodating taller riders' leg length without compromising standover height
SPECIFICATIONS:
Frameset
- Frame: Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
- Fork: RockShox SID, DebonAir spring, Rush RL damper, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
- Shock: RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
- Max compatible fork travel: 130mm (541mm axle-to-crown)
Wheels
- Wheel front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
- Wheel rear: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle, 29"
- Skewer rear: Bontrager Switch thru-axle, removable lever
- Tyre: Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29x2.40"
- Tyre part: Bontrager TLR sealant, 180 ml/6 oz
- Rim strip: Bontrager TLR
- Max tyre size: Frame: 29x2.50", Fork: See manufacturer
Drivetrain
- Shifter: Shimano XT M8100, 12-speed
- Rear derailleur: Shimano XT M8100, long cage
- Crank: Size: S, M, M/L, L: Shimano Deore M6120, 30T ring, 55 mm chainline, 170 mm length; Size: XL: Shimano Deore M6120, 30T ring, 55 mm chainline, 175 mm length
- Bottom bracket: Shimano SM-BB52, 73 mm, threaded external bearing
- Cassette: Shimano SLX M7100, 10-51T, 12-speed
- Chain: Shimano SLX M7100, 12-speed
- Max. chainring size: 1x: 36T round, 34T oval, min 28T
Components
- Saddle: Bontrager Arvada, steel rails, 138 mm width
- Seatpost: Size: S: TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm; Size: M, M/L: TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm; Size: L, XL: TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
- Handlebar: Size: S: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width; Size: M, M/L, L, XL: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
- Grips: Bontrager XR Trail Comp, nylon lock-on
- Stem: Bontrager Elite, 35 mm, 0-degree, 45 mm length
- Head set: Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
- Brake: Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
- Brake rotor: Size: S, M, M/L, L, XL: Shimano RT66, 6-bolt, 160 mm; Size: S, M, M/L, L, XL: Shimano RT66, 6-bolt, 180 mm
Accessories
- Bag: Bontrager BITS Internal Frame Storage Bag
Weight
- M - 14.26 kg / 31.44 lbs (with TLR sealant, no tubes)
- Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
Fore more information, visit Trek's website
